Splicing Without Components

You can use a splice without component.

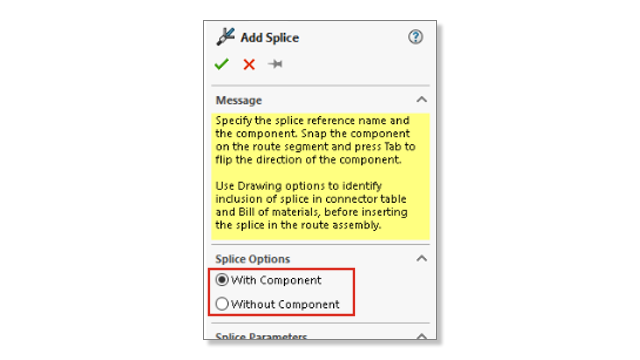

To add a splice, you can use the splice library. In the Add Splice PropertyManager, use Use Splice Library.

In the Add/Edit Splice PropertyManager, you can add notes that propagate into drawings of the flattened route. You can select the Add Splice in Circuit Summary to add a splice without component in the circuit summary table.

Splices without component do not appear in BOMs.
