Examples of Complex Corner Management

This topic demonstrates examples of complex corner with various trim orders.

In the following examples, the numbers on members represent trim orders:

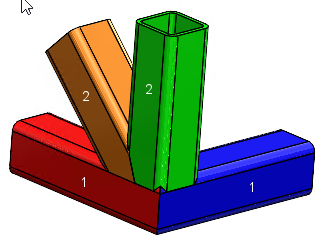

  • Trim Order=1
  • Trim Order=1
  • Trim Order=2
  • Trim Order=2

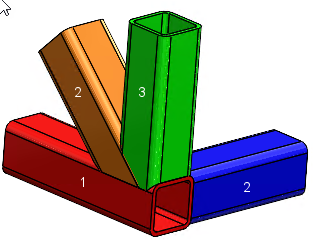

  • Trim Order=1
  • Trim Order=2
  • Trim Order=2
  • Trim Order=3

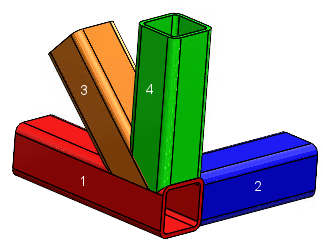

  • Trim Order=1
  • Trim Order=2
  • Trim Order=3
  • Trim Order=4

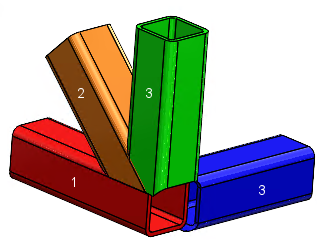

  • Trim Order=1
  • Trim Order=2
  • Trim Order=3
  • Trim Order=3

Member in Trim Tool Member Group

In the Complex Corner PropertyManager, when you move a member from Body Trim group to the Trim Tool Member group, the remaining members are trimmed. The trimming is based on:

  • the trim orders of the remaining members
  • the position of the member that is moved to the Trim Tool Member group.

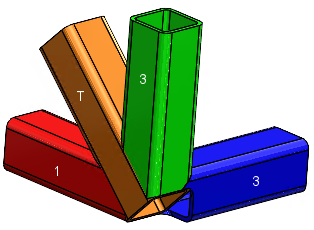

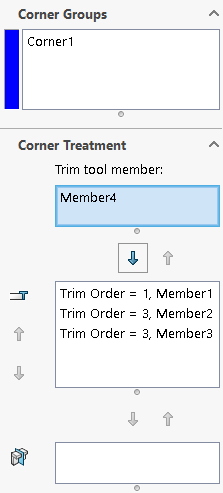

In the following example, T represents that member 4 is moved to Trim Tool Member group.

Member in Planar Tool Group

In the Complex Corner PropertyManager, when you move a member to the Planar Tool group, the moved member is trimmed. The trimming is based on the trim orders and positions of the members that are touching the moved member.

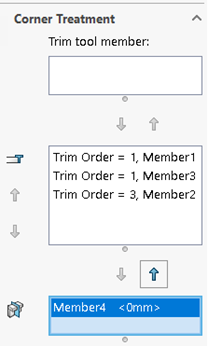

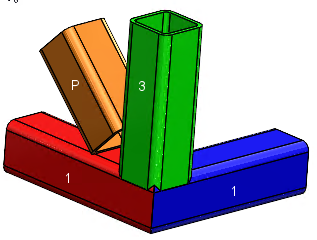

In the following example, P represents that member 4 is moved to Planar Tool group.
