You can open the View Mates window for any selected reference geometry, such as planes, axes, or other reference geometry.
For more information, see Selecting Reference Geometry.
To view mates for selected reference geometry:
-
Open an assembly.
-

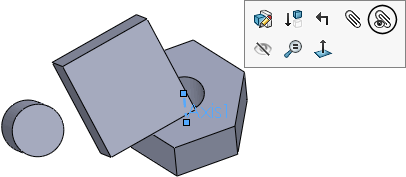

Select mated reference geometry, for example, a mated plane or
axis.
-
Click View Mates
.
The View Mates
window lists mates that reference the selected reference geometry.
