Editing the Origin Datum

  1. Do one of the following:
    • Select an axis in the graphics area, then click Edit datum definition in the Hole table axis PropertyManager.
    • Right-click the hole table in the FeatureManager design tree and select Edit Feature.
  2. In the graphics area, select a vertex or X and Y axes.
  3. Click PM_OK.gif.
    The X LOC and Y LOC columns update accordingly.

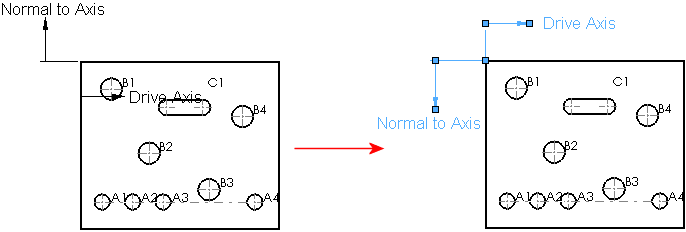

  4. Resize and reposition the coordinate markers by dragging them.
