Excluding a Component from a Bill of Materials

You can exclude a component, configuration, or model from the bill of materials. When you select this option, the exclusion occurs the next time you insert the component, configuration, or model.

To exclude a component from a bill of materials:
  1. Open a component and click the ConfigurationManager tab.
  2. Right-click a configuration and click Properties.

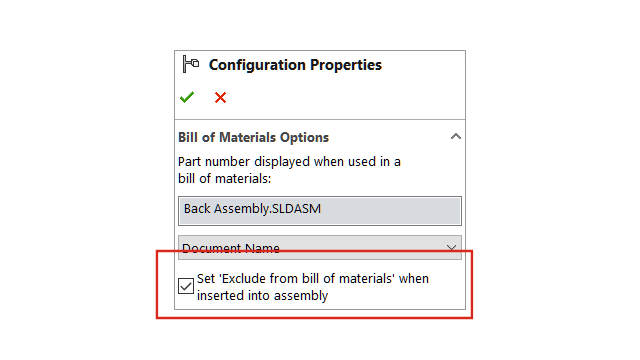

  3. In the PropertyManager, under Bill of Materials Options, select Set 'Exclude from bill of materials' when inserted into assembly.
