Cross references and circuits

As seen in Configuration of cross references, some types of circuits are associated with a cross references thumbnail (graphic symbol). These are circuits associated with a Child or Same level symbol (Parent symbols do not generate cross references thumbnails).

When cross references thumbnails are generated, the softwarelists all circuits associated with the component, filters them to retain only the Child or Same level circuits, and uses the cross references thumbnail associated with the type of circuit to generate the graphics. The material terminals numbers are automatically added, as is the position of the symbols in the electrical project and drawings.

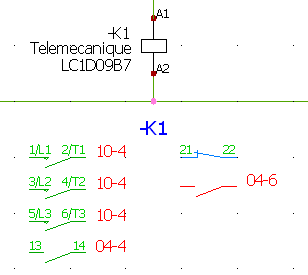

In the above example, there are 3 NO power contact type circuits in column 4 of drawing 10 and one NO contact in column 4 of drawing 04. The NC contact belonging to the manufacturer part is not used in the drawing (it is placed in reserve instead). The second NO contact (column 6 of drawing 04) is not part of the manufacturer part.
