Use this interface to manage manufacturer part inside a project. More...

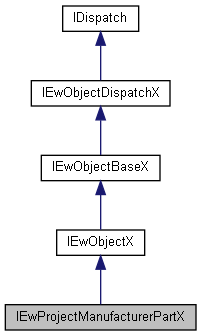

Inheritance diagram for IEwProjectManufacturerPartX:

[legend]

Public Member Functions
EwErrorCode	setUserData (LONG nUserDataNumber, BSTR strValue)
	Set user data of the object. More...

BSTR	getUserData (LONG nUserDataNumber, EwErrorCode *errorCode)
	Get user data of the object. More...

EwErrorCode	setTranslatedData (LONG nUserDataNumber, BSTR strLanguage, BSTR strValue)
	Set the value of a translated text. More...

BSTR	getTranslatedData (LONG nUserDataNumber, BSTR strLanguage, EwErrorCode *errorCode)
	Get the value of a translated text. More...

BSTR	get3DPartFilePath (EwErrorCode *errorCode)
	Get the file path of the associated 3D part. More...

BSTR	getReference (EwErrorCode *errorCode)
	Get the reference name of this manufacturer part. More...

EwErrorCode	setReference (BSTR strReference)
	Set the reference name of this manufacturer part. More...

BSTR	getManufacturer (EwErrorCode *errorCode)
	Get the manufacturer name of the current manufacturer part. More...

EwErrorCode	setManufacturer (BSTR strManufacturerName)
	Set the manufacturer name of the current manufacturer part. More...

BSTR	getSeries (EwErrorCode *errorCode)
	Get the series of the current manufacturer part. More...

EwErrorCode	setSeries (BSTR strSeries)
	Set the series of the current manufacturer part. More...

BSTR	getDataSheetFilePath (EwErrorCode *errorCode)
	Get the data sheet file path of the current manufacturer part. More...

EwErrorCode	setDataSheetFilePath (BSTR strDataSheetFilePath)
	Set the data sheet file path of the current manufacturer part. More...

BSTR	getSupplierName (EwErrorCode *errorCode)
	Get the supplier name of the current manufacturer part. More...

EwErrorCode	setSupplierName (BSTR strSupplierName)
	Set the supplier name of the current manufacturer part. More...

BSTR	getStockNumber (EwErrorCode *errorCode)
	Get the stock number of the current manufacturer part. More...

EwErrorCode	setStockNumber (BSTR strStockNumber)
	Set the stock number of the current manufacturer part. More...

BSTR	getDescription (BSTR strLanguageCode, EwErrorCode *errorCode)
	Get the manufacturer part description. More...

EwErrorCode	setDescription (BSTR strLanguageCode, BSTR strDescription)
	Set the manufacturer part description. More...

LONG	getClassificationID ()
	Deprecated use getClassId. More...

VARIANT_BOOL	isRailOrDuct (EwErrorCode *errorCode)
	Check if the manufacturer part is a rail or a duct. More...

DOUBLE	getWidth (EwErrorCode *errorCode)
	Get the width in millimeters of the current manufacturer part. More...

EwErrorCode	setWidth (DOUBLE dWidth)
	Set the width in millimeters of the current manufacturer part. More...

DOUBLE	getHeight (EwErrorCode *errorCode)
	Get the height in millimeters of the current manufacturer part. More...

EwErrorCode	setHeight (DOUBLE dHeight)
	Set the height in millimeters of the current manufacturer part. More...

DOUBLE	getDepth (EwErrorCode *errorCode)
	Get the depth in millimeters of the manufacturer part. More...

EwErrorCode	setDepth (DOUBLE dDepth)
	Set the depth in millimeters of the current manufacturer part. More...

DOUBLE	getLength (EwErrorCode *errorCode)
	Get the length in millimeters of the manufacturer part. More...

EwErrorCode	setLength (DOUBLE dLength)
	Set the length in millimeters of the current manufacturer part. More...

DOUBLE	getAdjustableLength (EwErrorCode *errorCode)
	Get the adjustable length of the manufacturer part. More...

LONG	getEwProjectManufacturerPartCircuitCount (EwErrorCode *errorCode)
	Get the number of circuits associated to the current manufacturer part. More...

LONG	getEwProjectManufacturerPartTerminalCount (EwErrorCode *errorCode)
	Get the number of terminals associated to the current manufacturer part. More...

IEwProjectComponentX	getEwProjectComponent (EwErrorCode *errorCode)
	Get the component to which the current manufacturer part is associated. More...

IEwProjectLocationX	getEwProjectLocation (EwErrorCode *errorCode)
	Get the location to which the manufacturer part is associated. More...

BSTR	getArticleNumber (EwErrorCode *errorCode)
	Get article number of the object. More...

EwErrorCode	setArticleNumber (BSTR strArticleNumber)
	Set article number of the object. More...

BSTR	getExternalID (EwErrorCode *errorCode)
	Get external identifier. More...

EwErrorCode	setExternalID (BSTR strExternalID)
	Set the external identifier. More...

VARIANT_BOOL	getExcludeFromBillOfMaterials (EwErrorCode *errorCode)
	Check if current manufacturer part is to exclude from bill of materials. More...

EwErrorCode	setExcludeFromBillOfMaterials (VARIANT_BOOL bIsExcludeFromBOM)
	Set if current manufacturer part is to exclude from bill of materials. More...

long	getObjectID (EwErrorCode *errorCode)
	Return the Object ID associated with the manufacturer part. More...

EwErrorCode	setObjectID (long lID)
	Sets the ID of the object to associate with the manufacturer part. More...

EwErrorCode	setHarnessID (long lHarnessID)
	Set the Harness ID of this manufacturer part. More...

LONG	getHarnessID (EwErrorCode *errorCode)
	Get the Harness ID associated with the manufacturer part. More...

IEwClassificationX	getClassification (EwErrorCode *errorCode)
	Get the classification of the current manufacturer part. More...

EwErrorCode	setClassificationID (long lClassificationID)
	Set the setClassification of the current manufacturer part by classification id. More...

EwErrorCode	setWeight (DOUBLE dWeight)
	Set the weight of the current manufacturer part. More...

DOUBLE	getWeight (EwErrorCode *errorCode)
	Get the weight in grams of the current manufacturer part. More...

LONG	getClassID (EwErrorCode *errorCode)
	Get the class ID of the manufacturer part. More...

EwErrorCode	setClassID (LONG lID)
	Set the class ID of this manufacturer part. More...

EwManufacturerPartType	getEwManufacturerPartType (EwErrorCode *errorCode)
	Get the base type (EwManufacturerPartType enum) of the current manufacturer part. More...

EwErrorCode	setEwManufacturerPartType (EwManufacturerPartType eManufacturerPartType)
	Set the base type (EwManufacturerPartType enum) of the current manufacturer part. More...

long	getLineDiagramSymbolID (EwErrorCode *errorCode)
	Get the line diagram symbol ID of the current manufacturer part. More...

EwErrorCode	setLineDiagramSymbolID (long lID)
	Set the line diagram symbol ID of the current manufacturer part. More...

long	getSchemeSymbolID (EwErrorCode *errorCode)
	Get the schematic symbol ID of the current manufacturer part. More...

EwErrorCode	setSchemeSymbolID (long lID)
	Set the schematic symbol ID of the current manufacturer part. More...

long	getConnectionLabelSymbolID (EwErrorCode *errorCode)
	Get the connection label symbol ID of the current manufacturer part. More...

EwErrorCode	setConnectionLabelSymbolID (long lID)
	Set the connection label symbol ID of the current manufacturer part. More...

long	get2DFootPrintSymbolID (EwErrorCode *errorCode)
	Get the 2D foot print symbol ID of the current manufacturer part. More...

EwErrorCode	set2DFootPrintSymbolID (long lID)
	Set the 2D foot print symbol ID of the current manufacturer part. More...

long	getTerminalStripSymbolID (EwErrorCode *errorCode)
	Get the terminal strip symbol ID of the current manufacturer part. More...

EwErrorCode	setTerminalStripSymbolID (long lID)
	Set the terminal strip symbol ID of the current manufacturer part. More...

long	getTerminalTypeID (EwErrorCode *errorCode)
	Get the terminal type ID of the current manufacturer part. More...

EwErrorCode	setTerminalTypeID (long lID)
	Set the terminal type ID of the current manufacturer part. More...

BSTR	getUseVoltage (EwErrorCode *errorCode)
	Get the use voltage of the current manufacturer part. More...

EwErrorCode	setUseVoltage (BSTR strUseVoltage)
	Set the use voltage of the current manufacturer part. More...

BSTR	getUseFrequency (EwErrorCode *errorCode)
	Get the use frequency of the current manufacturer part. More...

EwErrorCode	setUseFrequency (BSTR strUseFrequency)
	Set the use frequency of the current manufacturer part. More...

BSTR	getControlVoltage (EwErrorCode *errorCode)
	Get the control voltage of the current manufacturer part. More...

EwErrorCode	setControlVoltage (BSTR strControlVoltage)
	Set the control voltage of the current manufacturer part. More...

BSTR	getControlFrequency (EwErrorCode *errorCode)
	Get the control frequency of the current manufacturer part. More...

EwErrorCode	setControlFrequency (BSTR strControlFrequency)
	Set the control frequency of the current manufacturer part. More...

BSTR	getManufacturerDataValue (EwManufacturerDataIndex eIndexValue, EwErrorCode *errorCode)
	Get a manufacturer data value associated to the current manufacturer part. More...

EwErrorCode	setManufacturerDataValue (EwManufacturerDataIndex eIndexValue, BSTR strManufacturerDataValue)
	Set a manufacturer data value associated to the current manufacturer part. More...

Public Member Functions inherited from IEwObjectX
LONG	getID ()

Public Member Functions inherited from IEwObjectBaseX
EwErrorCode	insert ()
	Insert the object inside the current project. More...

EwErrorCode	remove ()
	Remove the object from the current project. More...

EwErrorCode	update ()
	Update the object inside the current project. More...

Detailed Description

Use this interface to manage manufacturer part inside a project.

Since: 2018 SP0

Member Function Documentation

◆ get2DFootPrintSymbolID()

long IEwProjectManufacturerPartX::get2DFootPrintSymbolID ( EwErrorCode * errorCode )

Get the 2D foot print symbol ID of the current manufacturer part.

Since: 2023 SP0

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR if no error detected
EW_OBJECT_NOT_FOUND if 2D foot print symbol was not found

Returns: the 2D foot print symbol of the current manufacturer part.

◆ get3DPartFilePath()

BSTR IEwProjectManufacturerPartX::get3DPartFilePath ( EwErrorCode * errorCode )

Get the file path of the associated 3D part.

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_NO_ERROR if no error detected
EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized

Returns: File Path

◆ getAdjustableLength()

DOUBLE IEwProjectManufacturerPartX::getAdjustableLength ( EwErrorCode * errorCode )

Get the adjustable length of the manufacturer part.

If the object is not adjustable, the depth is returned.

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR if no error detected

Returns: the adjustable length value of the current manufacturer part.

◆ getArticleNumber()

BSTR IEwProjectManufacturerPartX::getArticleNumber ( EwErrorCode * errorCode )

Get article number of the object.

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR No error detected

Returns: the string article number

◆ getClassID()

LONG IEwProjectManufacturerPartX::getClassID ( EwErrorCode * errorCode )

Get the class ID of the manufacturer part.

Since: 2023 SP0 -1 Unknown class, not initialized. -2 Unclassified elements, Minimum valid value.

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR if no error detected

Returns: the ID of manufacturer part.

◆ getClassification()

IEwClassificationX IEwProjectManufacturerPartX::getClassification ( EwErrorCode * errorCode )

Get the classification of the current manufacturer part.

Since: 2022 SP0

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if manufacturer part is invalid
EW_OBJECT_NOT_FOUND classification not found
EW_NO_ERROR if no error detected

Returns: EwAdClassification of project manufacturer part

◆ getClassificationID()

LONG IEwProjectManufacturerPartX::getClassificationID ( )

Deprecated use getClassId.

Get the classification ID of the manufacturer part.

Returns: Classification ID. -1 if the object is not valid

◆ getConnectionLabelSymbolID()

long IEwProjectManufacturerPartX::getConnectionLabelSymbolID ( EwErrorCode * errorCode )

Get the connection label symbol ID of the current manufacturer part.

Since: 2023 SP0

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR if no error detected
EW_OBJECT_NOT_FOUND if connection label symbol was not found

Returns: the connection label symbol of the current manufacturer part.

◆ getControlFrequency()

BSTR IEwProjectManufacturerPartX::getControlFrequency ( EwErrorCode * errorCode )

Get the control frequency of the current manufacturer part.

Since: 2023 SP0

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if current object has not been initialized
EW_NO_ERROR if no error detected

Returns: the control voltage

◆ getControlVoltage()

BSTR IEwProjectManufacturerPartX::getControlVoltage ( EwErrorCode * errorCode )

Get the control voltage of the current manufacturer part.

Since: 2023 SP0

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if current object has not been initialized
EW_NO_ERROR if no error detected

Returns: the control voltage

◆ getDataSheetFilePath()

BSTR IEwProjectManufacturerPartX::getDataSheetFilePath ( EwErrorCode * errorCode )

Get the data sheet file path of the current manufacturer part.

Since: 2023 SP0

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR if no error detected

Returns: the data sheet file path string of the current manufacturer part

◆ getDepth()

DOUBLE IEwProjectManufacturerPartX::getDepth ( EwErrorCode * errorCode )

Get the depth in millimeters of the manufacturer part.

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_NO_ERROR if no error detected
EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized

Returns: the depth value of the current manufacturer part.

◆ getDescription()

BSTR IEwProjectManufacturerPartX::getDescription	(	BSTR	strLanguageCode,
		EwErrorCode *	errorCode
	)

Get the manufacturer part description.

Parameters

[in]	strLanguageCode	The language of the description you want to set (like 'en' for english or 'fr' for french )
[out]	errorCode	EwErrorCode enum type, can be: EW_UNDEFINED_ERROR if another error occurred EW_INVALID_OBJECT if object is not initialized EW_BAD_INPUTS if strLanguageCode is not valid EW_NO_ERROR if no error detected

Returns: Description

◆ getEwManufacturerPartType()

EwManufacturerPartType IEwProjectManufacturerPartX::getEwManufacturerPartType ( EwErrorCode * errorCode )

Get the base type (EwManufacturerPartType enum) of the current manufacturer part.

Since: 2023 SP0

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR if no error detected

Returns: the EwManufacturerPartType enum value for the base type of this object.

◆ getEwProjectComponent()

IEwProjectComponentX IEwProjectManufacturerPartX::getEwProjectComponent ( EwErrorCode * errorCode )

Get the component to which the current manufacturer part is associated.

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR if no error detected

Returns: the pointer to the component. NULL if the current manufacturer part is not associated to a component

◆ getEwProjectLocation()

IEwProjectLocationX IEwProjectManufacturerPartX::getEwProjectLocation ( EwErrorCode * errorCode )

Get the location to which the manufacturer part is associated.

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_BAD_INPUTS if no object with the Objected ID related to this manufacturer Part.
EW_NO_ERROR if no error detected

Returns: the pointer to the location. NULL if the manufacturer part is not associated to a location

◆ getEwProjectManufacturerPartCircuitCount()

LONG IEwProjectManufacturerPartX::getEwProjectManufacturerPartCircuitCount ( EwErrorCode * errorCode )

Get the number of circuits associated to the current manufacturer part.

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR if no error detected

Returns: the number of circuits of the current manufacturer part.

◆ getEwProjectManufacturerPartTerminalCount()

LONG IEwProjectManufacturerPartX::getEwProjectManufacturerPartTerminalCount ( EwErrorCode * errorCode )

Get the number of terminals associated to the current manufacturer part.

Since: 2023 SP0

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_NO_ERROR if no error detected
EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized

Returns: the number of terminals of the current manufacturer part.

◆ getExcludeFromBillOfMaterials()

VARIANT_BOOL IEwProjectManufacturerPartX::getExcludeFromBillOfMaterials ( EwErrorCode * errorCode )

Check if current manufacturer part is to exclude from bill of materials.

Since: 2021 SP0

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if current object has not been initialized
EW_NO_ERROR if no error detected

Returns: True if the manufacturer is exclude from bill of materials else false

◆ getExternalID()

BSTR IEwProjectManufacturerPartX::getExternalID ( EwErrorCode * errorCode )

Get external identifier.

Since: 2019

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if current object has not been initialized
EW_NO_ERROR if no error detected

Returns: the string external identifier

◆ getHarnessID()

LONG IEwProjectManufacturerPartX::getHarnessID ( EwErrorCode * errorCode )

Get the Harness ID associated with the manufacturer part.

Return -1 if the current manufacturer part is not associated to a harness.

Since: 2021 SP0

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT current object is invalid
EW_NO_ERROR if no error detected

Returns: the Harness ID associated at the current cable.

◆ getHeight()

DOUBLE IEwProjectManufacturerPartX::getHeight ( EwErrorCode * errorCode )

Get the height in millimeters of the current manufacturer part.

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR if no error detected

Returns: the height value of the current manufacturer part.

◆ getLength()

DOUBLE IEwProjectManufacturerPartX::getLength ( EwErrorCode * errorCode )

Get the length in millimeters of the manufacturer part.

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR if no error detected

Returns: the length value of the current manufacturer part.

◆ getLineDiagramSymbolID()

long IEwProjectManufacturerPartX::getLineDiagramSymbolID ( EwErrorCode * errorCode )

Get the line diagram symbol ID of the current manufacturer part.

Since: 2023 SP0

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR if no error detected
EW_OBJECT_NOT_FOUND if line diagram Symbol not found

Returns: the line diagram symbol ID of the current manufacturer part.

◆ getManufacturer()

BSTR IEwProjectManufacturerPartX::getManufacturer ( EwErrorCode * errorCode )

Get the manufacturer name of the current manufacturer part.

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR if no error detected

Returns: the manufacturer name of the current manufacturer part

◆ getManufacturerDataValue()

BSTR IEwProjectManufacturerPartX::getManufacturerDataValue	(	EwManufacturerDataIndex	eIndexValue,
		EwErrorCode *	errorCode
	)

Get a manufacturer data value associated to the current manufacturer part.

Since: 2023 SP0

Parameters

[in]	eIndexValue	EwManufacturerDataIndex enum type corresponding to the index of the manufacturer data to get the value from.
[out]	errorCode	EwErrorCode enum type, can be: EW_UNDEFINED_ERROR if another error occurred EW_INVALID_OBJECT wrong manufacturer part is called, or manufacturer part doesn't belong to a specific class EW_FILE_NOT_FOUND unable to find the user data description file EW_INVALID_INDEX unavailable field for this manufacturer part (on the given index eIndexValue) EW_NO_ERROR if no error detected

Returns: a manufacturer data value associated to the current manufacturer part.

◆ getObjectID()

long IEwProjectManufacturerPartX::getObjectID ( EwErrorCode * errorCode )

Return the Object ID associated with the manufacturer part.

Could be Component, Location or Harness.

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if current object has not been initialized
EW_NO_ERROR if no error detected

Returns: the Object ID associated with the manufacturer part.

◆ getReference()

BSTR IEwProjectManufacturerPartX::getReference ( EwErrorCode * errorCode )

Get the reference name of this manufacturer part.

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_NO_ERROR if no error detected
EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized

Returns: Reference name

◆ getSchemeSymbolID()

long IEwProjectManufacturerPartX::getSchemeSymbolID ( EwErrorCode * errorCode )

Get the schematic symbol ID of the current manufacturer part.

Since: 2023 SP0

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR if no error detected
EW_OBJECT_NOT_FOUND if scheme symbol was not found

Returns: the schematic symbol ID of the current manufacturer part.

◆ getSeries()

BSTR IEwProjectManufacturerPartX::getSeries ( EwErrorCode * errorCode )

Get the series of the current manufacturer part.

Since: 2023 SP0

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR if no error detected

Returns: the series of the current manufacturer part

◆ getStockNumber()

BSTR IEwProjectManufacturerPartX::getStockNumber ( EwErrorCode * errorCode )

Get the stock number of the current manufacturer part.

Since: 2023 SP0

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR if no error detected

Returns: the stock number of the current manufacturer part

◆ getSupplierName()

BSTR IEwProjectManufacturerPartX::getSupplierName ( EwErrorCode * errorCode )

Get the supplier name of the current manufacturer part.

Since: 2023 SP0

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR if no error detected

Returns: the supplier name of the current manufacturer part

◆ getTerminalStripSymbolID()

long IEwProjectManufacturerPartX::getTerminalStripSymbolID ( EwErrorCode * errorCode )

Get the terminal strip symbol ID of the current manufacturer part.

Since: 2023 SP0

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR if no error detected
EW_OBJECT_NOT_FOUND if terminal strip symbol was not found

Returns: the terminal strip symbol ID of the current manufacturer part.

◆ getTerminalTypeID()

long IEwProjectManufacturerPartX::getTerminalTypeID ( EwErrorCode * errorCode )

Get the terminal type ID of the current manufacturer part.

Since: 2023 SP0

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR if no error detected
EW_OBJECT_NOT_FOUND if terminal type does not exist

Returns: the terminal type ID of the current manufacturer part.

◆ getTranslatedData()

BSTR IEwProjectManufacturerPartX::getTranslatedData	(	LONG	nUserDataNumber,
		BSTR	strLanguage,
		EwErrorCode *	errorCode
	)

Get the value of a translated text.

Parameters

[in]	nUserDataNumber	Number of the text to get
[in]	strLanguage	Language code of the text to get
[out]	errorCode	EwErrorCode enum type, can be: EW_NO_ERROR No error detected EW_UNDEFINED_ERROR if another error occurred EW_OUT_OF_SCOPE number out of the scope supported by the method EW_BAD_INPUTS if the language code is not supported

Returns: Value of the text to get

◆ getUseFrequency()

BSTR IEwProjectManufacturerPartX::getUseFrequency ( EwErrorCode * errorCode )

Get the use frequency of the current manufacturer part.

Since: 2023 SP0

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if current object has not been initialized
EW_NO_ERROR if no error detected

Returns: the use frequency

◆ getUserData()

BSTR IEwProjectManufacturerPartX::getUserData	(	LONG	nUserDataNumber,
		EwErrorCode *	errorCode
	)

Get user data of the object.

Parameters

[in]	nUserDataNumber	number of the user data
[out]	errorCode	EwErrorCode enum type, can be: EW_NO_ERROR No error detected EW_UNDEFINED_ERROR if another error occurred EW_OUT_OF_SCOPE number out of the scope supported by the method

Returns: value of the user data requested

◆ getUseVoltage()

BSTR IEwProjectManufacturerPartX::getUseVoltage ( EwErrorCode * errorCode )

Get the use voltage of the current manufacturer part.

Since: 2023 SP0

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if current object has not been initialized
EW_NO_ERROR if no error detected

Returns: the use voltage

◆ getWeight()

DOUBLE IEwProjectManufacturerPartX::getWeight ( EwErrorCode * errorCode )

Get the weight in grams of the current manufacturer part.

Since: 2023 SP0

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR if no error detected

Returns: The weight

◆ getWidth()

DOUBLE IEwProjectManufacturerPartX::getWidth ( EwErrorCode * errorCode )

Get the width in millimeters of the current manufacturer part.

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR if no error detected

Returns: Width value

◆ isRailOrDuct()

VARIANT_BOOL IEwProjectManufacturerPartX::isRailOrDuct ( EwErrorCode * errorCode )

Check if the manufacturer part is a rail or a duct.

Parameters

[out]

errorCode

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR if no error detected

Returns: True if the manufacturer part is a rail or a duct

◆ set2DFootPrintSymbolID()

EwErrorCode IEwProjectManufacturerPartX::set2DFootPrintSymbolID ( long lID )

Set the 2D foot print symbol ID of the current manufacturer part.

Since: 2023 SP0

Parameters

[in] lID ID of the 2D foot print symbol you want to set

Returns

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_BAD_INPUT if lID is negative
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR if no error detected
EW_OBJECT_NOT_FOUND if symbol was not found by lID

◆ setArticleNumber()

EwErrorCode IEwProjectManufacturerPartX::setArticleNumber ( BSTR strArticleNumber )

Set article number of the object.

Parameters

[in] strArticleNumber string to set on the article number

Returns

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_BAD_INPUTS if strArticleNumber exceeds the size limit 255
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR No error detected

◆ setClassID()

EwErrorCode IEwProjectManufacturerPartX::setClassID ( LONG lID )

Set the class ID of this manufacturer part.

Since: 2023 SP0

Parameters

[in] lID new class you want to set

Returns

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_BAD_INPUTS no class found
EW_NO_ERROR if no error detected

◆ setClassificationID()

EwErrorCode IEwProjectManufacturerPartX::setClassificationID ( long lClassificationID )

Set the setClassification of the current manufacturer part by classification id.

Since: 2022 SP0

Parameters

[in] lClassificationID ID of new project manufacturer part for component .

Returns

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if project manufacturer part is invalid
EW_BAD_INPUTS classification not found
EW_NO_ERROR if no error detected

◆ setConnectionLabelSymbolID()

EwErrorCode IEwProjectManufacturerPartX::setConnectionLabelSymbolID ( long lID )

Set the connection label symbol ID of the current manufacturer part.

Since: 2023 SP0

Parameters

[in] lID the connection label symbol ID you want to set

Returns

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_BAD_INPUT if lID is negative
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR if no error detected
EW_OBJECT_NOT_FOUND if symbol was not found by lID

◆ setControlFrequency()

EwErrorCode IEwProjectManufacturerPartX::setControlFrequency ( BSTR strControlFrequency )

Set the control frequency of the current manufacturer part.

Since: 2023 SP0

Parameters

[in] strControlFrequency The control frequency you want to set

Returns

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_BAD_INPUTS if strControlFrequency exceeds the defined size limit 70
EW_INVALID_OBJECT if current object has not been initialized
EW_NO_ERROR if no error detected

◆ setControlVoltage()

EwErrorCode IEwProjectManufacturerPartX::setControlVoltage ( BSTR strControlVoltage )

Set the control voltage of the current manufacturer part.

Since: 2023 SP0

Parameters

[in] strControlVoltage The control voltage you want to set

Returns

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_BAD_INPUTS if strControlVoltage exceeds the defined size limit 70
EW_INVALID_OBJECT if current object has not been initialized
EW_NO_ERROR if no error detected

◆ setDataSheetFilePath()

EwErrorCode IEwProjectManufacturerPartX::setDataSheetFilePath ( BSTR strDataSheetFilePath )

Set the data sheet file path of the current manufacturer part.

Since: 2023 SP0

Parameters

[in] strDataSheetFilePath the data sheet file path you want to set

Returns

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_BAD_INPUTS if the number of characters or strDataSheetFilePath exceeds the size limit 1024
EW_FILE_NOT_FOUND if strDataSheetFilePath file not found
EW_NO_ERROR No error detected

◆ setDepth()

EwErrorCode IEwProjectManufacturerPartX::setDepth ( DOUBLE dDepth )

Set the depth in millimeters of the current manufacturer part.

Since: 2023 SP0

Parameters

[in] dDepth the new depth you want to set

Returns

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_BAD_INPUTS if the dDepth is negative
EW_NO_ERROR No error detected

◆ setDescription()

EwErrorCode IEwProjectManufacturerPartX::setDescription	(	BSTR	strLanguageCode,
		BSTR	strDescription
	)

Set the manufacturer part description.

Since: 2023 SP0

Parameters

[in]	strLanguageCode	The language of the description you want to set (like 'en' for english or 'fr' for french )
[in]	strDescription	The description you want to set

Returns

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_BAD_INPUTS if strLanguageCode is not valid, or strDescription exceeds the size limit 255
EW_NO_ERROR if no error detected

◆ setEwManufacturerPartType()

EwErrorCode IEwProjectManufacturerPartX::setEwManufacturerPartType ( EwManufacturerPartType eManufacturerPartType )

Set the base type (EwManufacturerPartType enum) of the current manufacturer part.

Since: 2023 SP0

Parameters

[in] eManufacturerPartType the EwManufacturerPartType enum value for the base type you want to assign to this manufacturer part.

Returns

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR if no error detected

◆ setExcludeFromBillOfMaterials()

EwErrorCode IEwProjectManufacturerPartX::setExcludeFromBillOfMaterials ( VARIANT_BOOL bIsExcludeFromBOM )

Set if current manufacturer part is to exclude from bill of materials.

Since: 2021 SP0

Parameters

[in] bIsExcludeFromBOM True if it is to exclude from bill of materials else false

Returns

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if current object has not been initialized
EW_NO_ERROR if no error detected

◆ setExternalID()

EwErrorCode IEwProjectManufacturerPartX::setExternalID ( BSTR strExternalID )

Set the external identifier.

Since: 2019

Parameters

[in] strExternalID The external identifier you want to set

Returns

EwErrorCode enum type, can be:

EW_INVALID_OBJECT if current object has not been initialized
EW_UNDEFINED_ERROR if another error occurred
EW_NO_ERROR if no error detected

◆ setHarnessID()

EwErrorCode IEwProjectManufacturerPartX::setHarnessID ( long lHarnessID )

Set the Harness ID of this manufacturer part.

manufacturer part will be added to the harness after calling update or insert. Harness must exists to be able to set the ID. Setting the ID to -1 will remove the manufacturer part from the harness.

Since: 2021 SP0

Parameters

[in] lHarnessID The Harness ID to set.

Returns

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT current object is invalid
EW_BAD_INPUTS if the lHarnessID is not found
EW_NO_ERROR if no error detected

◆ setHeight()

EwErrorCode IEwProjectManufacturerPartX::setHeight ( DOUBLE dHeight )

Set the height in millimeters of the current manufacturer part.

Since: 2023 SP0

Parameters

[in] dHeight the new height you want to set

Returns

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_BAD_INPUTS if the dHeight is negative
EW_NO_ERROR No error detected

◆ setLength()

EwErrorCode IEwProjectManufacturerPartX::setLength ( DOUBLE dLength )

Set the length in millimeters of the current manufacturer part.

Since: 2023 SP0

Parameters

[in] dLength the new length you want to set

Returns

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_BAD_INPUTS if the dLength is negative
EW_NO_ERROR No error detected

◆ setLineDiagramSymbolID()

EwErrorCode IEwProjectManufacturerPartX::setLineDiagramSymbolID ( long lID )

Set the line diagram symbol ID of the current manufacturer part.

Since: 2023 SP0

Parameters

[in] lID the line diagram symbol ID you want to set

Returns

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_BAD_INPUT if lID is negative
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR if no error detected
EW_OBJECT_NOT_FOUND if symbol was not found by lID

◆ setManufacturer()

EwErrorCode IEwProjectManufacturerPartX::setManufacturer ( BSTR strManufacturerName )

Set the manufacturer name of the current manufacturer part.

Since: 2023 SP0

Parameters

[in] strManufacturerName The manufacturer name you want to set

Returns

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_BAD_INPUTS if the number of characters of strManufacturerName exceeds the size limit 70
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR No error detected

◆ setManufacturerDataValue()

EwErrorCode IEwProjectManufacturerPartX::setManufacturerDataValue	(	EwManufacturerDataIndex	eIndexValue,
		BSTR	strManufacturerDataValue
	)

Set a manufacturer data value associated to the current manufacturer part.

Since: 2023 SP0

Parameters

[in]	eIndexValue	EwManufacturerDataIndex enum type corresponding to the index of manufacturer data to apply the value to.
[in]	strManufacturerDataValue	is the manufacturer data value to apply.

Returns

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT wrong manufacturer part is called, or manufacturer part doesn't belong to a specific class
EW_FILE_NOT_FOUND unable to find the user data description file
EW_INVALID_INDEX unavailable field for this manufacturer part (on the given index eIndexValue)
EW_NO_ERROR if no error detected

◆ setObjectID()

EwErrorCode IEwProjectManufacturerPartX::setObjectID ( long lID )

Sets the ID of the object to associate with the manufacturer part.

Object associated with the ID must exists. Can only be done before inserting the manufacturer part. Could be Component, Location or Harness.

Parameters

[in] lID ID of the Object

Returns

EwErrorCode enum type, can be:

EW_INVALID_OBJECT if current object has not been initialized
EW_UNDEFINED_ERROR if another error occurred
EW_NO_ERROR if no error detected

◆ setReference()

EwErrorCode IEwProjectManufacturerPartX::setReference ( BSTR strReference )

Set the reference name of this manufacturer part.

Since: 2023 SP0

Parameters

[in] strReference The reference name you want to set

Returns

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_BAD_INPUTS if the number of characters of strReference exceeds the size limit 150
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR No error detected

◆ setSchemeSymbolID()

EwErrorCode IEwProjectManufacturerPartX::setSchemeSymbolID ( long lID )

Set the schematic symbol ID of the current manufacturer part.

Since: 2023 SP0

Parameters

[in] lID the schematic symbol ID you want to set

Returns

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_BAD_INPUT if lID is negative
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR if no error detected
EW_OBJECT_NOT_FOUND if symbol was not found by lID

◆ setSeries()

EwErrorCode IEwProjectManufacturerPartX::setSeries ( BSTR strSeries )

Set the series of the current manufacturer part.

Since: 2023 SP0

Parameters

[in] strSeries the series you want to set

Returns

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_BAD_INPUTS if the number of characters of strSeries exceeds the size limit 255
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR No error detected

◆ setStockNumber()

EwErrorCode IEwProjectManufacturerPartX::setStockNumber ( BSTR strStockNumber )

Set the stock number of the current manufacturer part.

Since: 2023 SP0

Parameters

[in] strStockNumber the stock number you want to set

Returns

EwErrorCode enum type, can be:

EW_INVALID_OBJECT if object is not initialized
EW_BAD_INPUTS if the number of characters of strStockNumber exceeds the size limit 150
EW_UNDEFINED_ERROR if another error occurred
EW_NO_ERROR No error detected

◆ setSupplierName()

EwErrorCode IEwProjectManufacturerPartX::setSupplierName ( BSTR strSupplierName )

Set the supplier name of the current manufacturer part.

Since: 2023 SP0

Parameters

[in] strSupplierName the supplier name you want to set

Returns

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_BAD_INPUTS if the number of characters of strSupplierName exceeds the size limit 70
EW_NO_ERROR No error detected

◆ setTerminalStripSymbolID()

EwErrorCode IEwProjectManufacturerPartX::setTerminalStripSymbolID ( long lID )

Set the terminal strip symbol ID of the current manufacturer part.

Since: 2023 SP0

Parameters

[in] lID ID of the terminal strip symbol you want to set

Returns

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_BAD_INPUT if lID is negative
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR if no error detected
EW_OBJECT_NOT_FOUND if symbol was not found by lID

◆ setTerminalTypeID()

EwErrorCode IEwProjectManufacturerPartX::setTerminalTypeID ( long lID )

Set the terminal type ID of the current manufacturer part.

Since: 2023 SP0

Parameters

[in] lID ID of the terminal type you want to set

Returns

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_BAD_INPUT if lID is negative
EW_INVALID_OBJECT if object is not initialized
EW_NO_ERROR if no error detected
EW_OBJECT_NOT_FOUND if terminal type was not found by lID

◆ setTranslatedData()

EwErrorCode IEwProjectManufacturerPartX::setTranslatedData	(	LONG	nUserDataNumber,
		BSTR	strLanguage,
		BSTR	strValue
	)

Set the value of a translated text.

Parameters

[in]	nUserDataNumber	Number of the text to set
[in]	strLanguage	Language of the text
[in]	strValue	Value of the text

Returns

EwErrorCode enum type, can be:

EW_NO_ERROR No error detected
EW_UNDEFINED_ERROR if another error occurred
EW_OUT_OF_SCOPE number out of the scope supported by the method
EW_BAD_INPUTS if the language code is not supported

◆ setUseFrequency()

EwErrorCode IEwProjectManufacturerPartX::setUseFrequency ( BSTR strUseFrequency )

Set the use frequency of the current manufacturer part.

Since: 2023 SP0

Parameters

[in] strUseFrequency The use frequency you want to set

Returns

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_BAD_INPUTS if strUseFrequency exceeds the defined size limit 70
EW_INVALID_OBJECT if current object has not been initialized
EW_NO_ERROR if no error detected

◆ setUserData()

EwErrorCode IEwProjectManufacturerPartX::setUserData	(	LONG	nUserDataNumber,
		BSTR	strValue
	)

Set user data of the object.

Parameters

[in]	nUserDataNumber	number of the user data
[in]	strValue	value to set

Returns

EwErrorCode enum type, can be:

EW_NO_ERROR No error detected
EW_UNDEFINED_ERROR if another error occurred
EW_OUT_OF_SCOPE number out of the scope supported by the method

◆ setUseVoltage()

EwErrorCode IEwProjectManufacturerPartX::setUseVoltage ( BSTR strUseVoltage )

Set the use voltage of the current manufacturer part.

Since: 2023 SP0

Parameters

[in] strUseVoltage The use voltage you want to set

Returns

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_BAD_INPUTS if strUseVoltage exceeds the defined size limit 70
EW_INVALID_OBJECT if current object has not been initialized
EW_NO_ERROR if no error detected

◆ setWeight()

EwErrorCode IEwProjectManufacturerPartX::setWeight ( DOUBLE dWeight )

Set the weight of the current manufacturer part.

Since: 2023 SP0

Parameters

[in] dWeight The weight in grams

Returns

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_BAD_INPUTS if weight is negative
EW_NO_ERROR if no error detected

◆ setWidth()

EwErrorCode IEwProjectManufacturerPartX::setWidth ( DOUBLE dWidth )

Set the width in millimeters of the current manufacturer part.

Since: 2023 SP0

Parameters

[in] dWidth The new width you want to set

Returns

EwErrorCode enum type, can be:

EW_UNDEFINED_ERROR if another error occurred
EW_INVALID_OBJECT if object is not initialized
EW_BAD_INPUTS if the dWidth is negative
EW_NO_ERROR No error detected


*Email:
Subject:		Feedback on Help Topics
Page:		SOLIDWORKS Electrical API: IEwProjectManufacturerPartX Interface Reference
*Comment:
*		I acknowledge I have read and I hereby accept the privacy policy under which my Personal Data will be used by Dassault Systèmes

Public Member Functions

Detailed Description

Member Function Documentation

◆ get2DFootPrintSymbolID()

◆ get3DPartFilePath()

◆ getAdjustableLength()

◆ getArticleNumber()

◆ getClassID()

◆ getClassification()

◆ getClassificationID()

◆ getConnectionLabelSymbolID()

◆ getControlFrequency()

◆ getControlVoltage()

◆ getDataSheetFilePath()

◆ getDepth()

◆ getDescription()

◆ getEwManufacturerPartType()

◆ getEwProjectComponent()

◆ getEwProjectLocation()

◆ getEwProjectManufacturerPartCircuitCount()

◆ getEwProjectManufacturerPartTerminalCount()

◆ getExcludeFromBillOfMaterials()

◆ getExternalID()

◆ getHarnessID()

◆ getHeight()

◆ getLength()

◆ getLineDiagramSymbolID()

◆ getManufacturer()

◆ getManufacturerDataValue()

◆ getObjectID()

◆ getReference()

◆ getSchemeSymbolID()

◆ getSeries()

◆ getStockNumber()

◆ getSupplierName()

◆ getTerminalStripSymbolID()

◆ getTerminalTypeID()

◆ getTranslatedData()

◆ getUseFrequency()

◆ getUserData()

◆ getUseVoltage()

◆ getWeight()

◆ getWidth()

◆ isRailOrDuct()

◆ set2DFootPrintSymbolID()

◆ setArticleNumber()

◆ setClassID()

◆ setClassificationID()

◆ setConnectionLabelSymbolID()

◆ setControlFrequency()

◆ setControlVoltage()

◆ setDataSheetFilePath()

◆ setDepth()

◆ setDescription()

◆ setEwManufacturerPartType()

◆ setExcludeFromBillOfMaterials()

◆ setExternalID()

◆ setHarnessID()

◆ setHeight()

◆ setLength()

◆ setLineDiagramSymbolID()

◆ setManufacturer()

◆ setManufacturerDataValue()

◆ setObjectID()

◆ setReference()

◆ setSchemeSymbolID()

◆ setSeries()

◆ setStockNumber()

◆ setSupplierName()

◆ setTerminalStripSymbolID()

◆ setTerminalTypeID()

◆ setTranslatedData()

◆ setUseFrequency()

◆ setUserData()

◆ setUseVoltage()

◆ setWeight()

◆ setWidth()
