Weld Tables

You can insert weld tables in drawings.

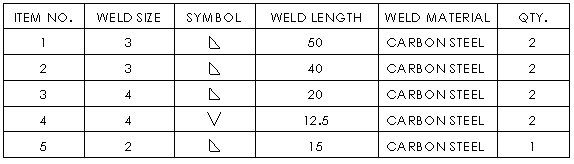

Use weld tables to summarize weld specifications including:
  • Weld quantity
  • Weld size
  • Weld symbol
  • Weld length
  • Custom weld bead properties such as weld material, process, mass, cost, and time

After customizing a weld table, you can save it as a template for future use. For details, see Table Templates.

The weld table dynamically updates when the corresponding weld beads or weld symbols change. If you update a value in the weld table and maintain the link to the weld bead or symbol, the weld bead or symbol updates in the model.
