Aligning a Route Subassembly to the Origin (2024 SP3)

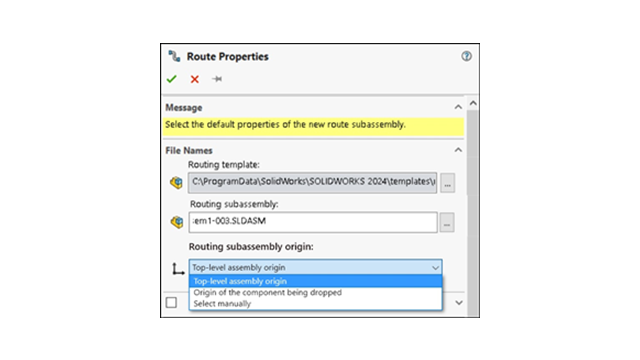

When creating a new route subassembly, you can align and position it according to your design requirements using the Route Properties PropertyManager.

Choices for defining the origin include:
  • Top-Level Assembly Origin

    The origin of the routing subassembly aligns coincidentally with the origin of the top-level assembly.

  • Origin of the component being dropped

    The origin of the routing subassembly aligns coincidentally with the origin of the fitting being added.

  • Select manually

    The origin of the routing subassembly aligns coincidentally with a sketch point or vertex that you specify. You can also select the C-point or R-point of the fitting.
