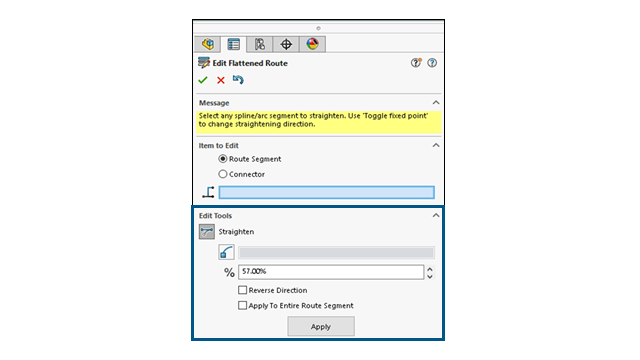

The Edit Flattened Route
PropertyManager lets you reverse the direction of route segments when you straighten
flattened discrete
wires.
You can also specify a percentage to straighten
segments
instead of straightening an entire
discrete wire
segment.
To access these options, open a manufactured
route assembly of
discrete wires and click Edit Flattened
Route
. In the
PropertyManager, click Route Segment and select a
spline from the subassembly or flyout tree. Then click Straigthen
, enter a value for %, and select Reverse
Direction.
