MotionManager Tools The following table describes the motion study tools. An X in a column indicates that the tool is available for the motion study type. Tool Animation Basic Motion Motion Analysis Calculate. Calculates the current simulation. If you alter the simulation, you must recalculate it before replaying. X X X Play from Start. Resets the components and plays the simulation. Use after calculating the simulation. X X X Play. Plays the simulation beginning at the current time bar location. X X X Stop. X X X Time Bar. Specifies the start of the animation by moving the slider. X X X Playback Speed. X X X Playback Mode. Normal Plays from beginning to end one time. Loop Continuous play, beginning to end, and then loop to beginning and continue playing. Reciprocate Continuous play, beginning to end, then reverse-play end to beginning. X X X Save Animation X X X Animation Wizard X X X Autokey. Automatically places a new key when you move or change components. X Add/Update Key. Adds a key or updates properties of an existing key. X X X Motion Elements Tool Animation Basic Motion Motion Analysis Motor X X X, with expressions Spring X (linear only) X Damper X Force X Contact X X Gravity X X Results and Plots X Motion Study Properties X X X Stress Analysis Tool Animation Basic Motion Motion Analysis Simulation Setup X, with SOLIDWORKS Simulation Calculate Simulation Results X, with SOLIDWORKS Simulation Stress PlotDeformation Plot Factor of Safety Plot X, with SOLIDWORKS Simulation Views Tool Animation Basic Motion Motion Analysis Event-based Motion View. Switches from a timeline view to an event-based view. X, with SOLIDWORKS Simulation Professional Timeline View. Switches from an event-based view to a timeline view. X, with SOLIDWORKS Simulation Professional Filters Tool Animation Basic Motion Motion Analysis No Filter X X X Filter Animated X X X Filter Driving X X X Filter Selected X X X Filter Results X Zoom Tool Animation Basic Motion Motion Analysis Zoom to Fit. Rescales the timeline view. X X X Zoom In. Enlarges the size of the timeline for more precise positioning of key points and the time bar. X X X Zoom Out. Reduces the size of the timeline to show a larger interval of time in the window. X X X Collapse MotionManager X X X Expand MotionManager X X X Parent topicMotion Elements Motion Study Elements Overview Motor PropertyManager Force PropertyManager Gravity PropertyManager Specifying Torsional Springs or Dampers Motion Element Reuse Stress Analysis for Motion About Playback Modes The motion study playback mode determines whether the motion simulation runs once, repeats, or loops continuously forward and backward. You can run three playback modes in a motion study: Normal , for playing the motion simulation once Loop , for continuously repeating the motion simulation from start to finish Reciprocate , for playing the motion simulation forward to the end, and reversing the motion back to the start in a continuous loop. You can access the playback mode list from the MotionManager toolbar, to the left of the Save Animation tool.
MotionManager Tools The following table describes the motion study tools. An X in a column indicates that the tool is available for the motion study type. Tool Animation Basic Motion Motion Analysis Calculate. Calculates the current simulation. If you alter the simulation, you must recalculate it before replaying. X X X Play from Start. Resets the components and plays the simulation. Use after calculating the simulation. X X X Play. Plays the simulation beginning at the current time bar location. X X X Stop. X X X Time Bar. Specifies the start of the animation by moving the slider. X X X Playback Speed. X X X Playback Mode. Normal Plays from beginning to end one time. Loop Continuous play, beginning to end, and then loop to beginning and continue playing. Reciprocate Continuous play, beginning to end, then reverse-play end to beginning. X X X Save Animation X X X Animation Wizard X X X Autokey. Automatically places a new key when you move or change components. X Add/Update Key. Adds a key or updates properties of an existing key. X X X Motion Elements Tool Animation Basic Motion Motion Analysis Motor X X X, with expressions Spring X (linear only) X Damper X Force X Contact X X Gravity X X Results and Plots X Motion Study Properties X X X Stress Analysis Tool Animation Basic Motion Motion Analysis Simulation Setup X, with SOLIDWORKS Simulation Calculate Simulation Results X, with SOLIDWORKS Simulation Stress PlotDeformation Plot Factor of Safety Plot X, with SOLIDWORKS Simulation Views Tool Animation Basic Motion Motion Analysis Event-based Motion View. Switches from a timeline view to an event-based view. X, with SOLIDWORKS Simulation Professional Timeline View. Switches from an event-based view to a timeline view. X, with SOLIDWORKS Simulation Professional Filters Tool Animation Basic Motion Motion Analysis No Filter X X X Filter Animated X X X Filter Driving X X X Filter Selected X X X Filter Results X Zoom Tool Animation Basic Motion Motion Analysis Zoom to Fit. Rescales the timeline view. X X X Zoom In. Enlarges the size of the timeline for more precise positioning of key points and the time bar. X X X Zoom Out. Reduces the size of the timeline to show a larger interval of time in the window. X X X Collapse MotionManager X X X Expand MotionManager X X X Parent topicMotion Elements Motion Study Elements Overview Motor PropertyManager Force PropertyManager Gravity PropertyManager Specifying Torsional Springs or Dampers Motion Element Reuse Stress Analysis for Motion About Playback Modes The motion study playback mode determines whether the motion simulation runs once, repeats, or loops continuously forward and backward. You can run three playback modes in a motion study: Normal , for playing the motion simulation once Loop , for continuously repeating the motion simulation from start to finish Reciprocate , for playing the motion simulation forward to the end, and reversing the motion back to the start in a continuous loop. You can access the playback mode list from the MotionManager toolbar, to the left of the Save Animation tool.

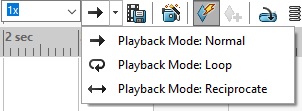

About Playback Modes The motion study playback mode determines whether the motion simulation runs once, repeats, or loops continuously forward and backward. You can run three playback modes in a motion study: Normal , for playing the motion simulation once Loop , for continuously repeating the motion simulation from start to finish Reciprocate , for playing the motion simulation forward to the end, and reversing the motion back to the start in a continuous loop. You can access the playback mode list from the MotionManager toolbar, to the left of the Save Animation tool.
