You can add tolerance
information directly to dimensions in
drawings.
This
ensures
clarity by specifying permissible variations in dimensions,
and
supports
accurate manufacturing and assembly processes.
Adding
tolerance has the following benefits:
- Lets
you
define upper and lower limits for dimensions directly.
- Provides various tolerance methods, such as symmetrical, deviation,
and limit-based representations.
- Lets you control the precision of tolerances independently.

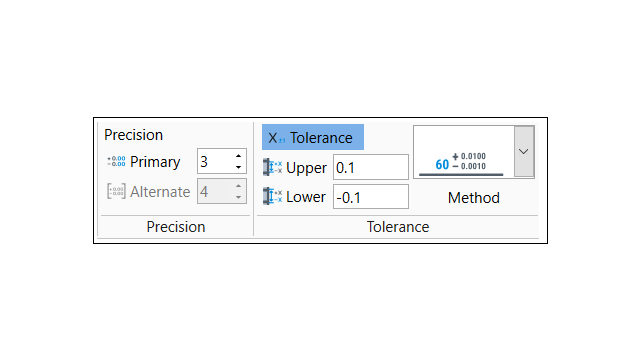

- Provides easy access to tolerance options through the Power Dimensioning Ribbon tab and Properties Palette.
