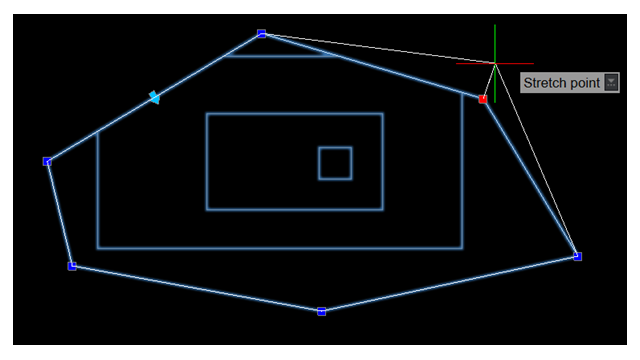

When you clip a block or an
externally referenced (xref) drawing, you can resize or edit their boundaries with
grips. In earlier releases, you had to recreate the clip each time you resized or edited
the boundaries.
This makes
it easier to
isolate a specific entity or area from the block or xref drawing to
display in the graphics area.
To edit clipped
external references and blocks:Do one of the following:
- On the ribbon, click .
- On the menu, click .
- Enter CLIPREFERENCE
(XCLIP) in the command window.
