You can import data more efficiently by applying shared values to
multiple circuits, terminals, or cable cores. While importing, if the values entered
lack separators, the single value applies to all the circuits, terminals, or cable
cores.
Benefits: This saves
time and reduces manual input errors.

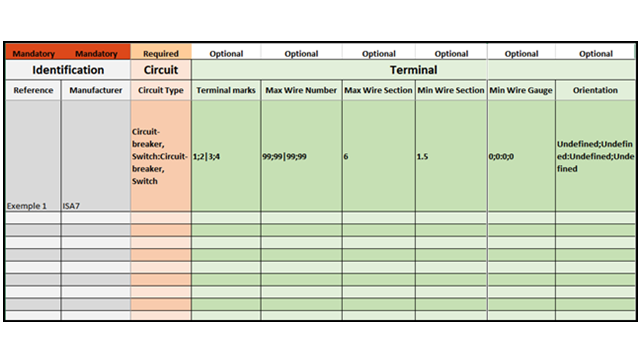

While importing the template in Manufacturer Part Management, if you enter a single value
for a terminal column, it applies to all terminals of the circuit. For example, if for
all the terminals, Max Wire
Section
is 6, you can enter only the value 6
without repeating the information. Previously, you had to enter the value 6;6|6;6. This is applicable when you select One line per reference for manufacturer parts and cable
references and One line per circuit for
manufacturer parts.
