Update Data and Replace Data in SOLIDWORKS Electrical 3D

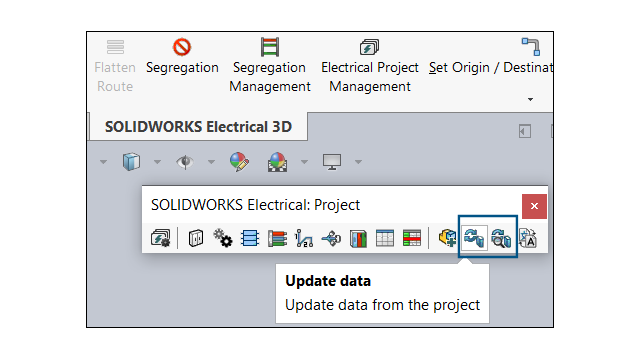

Update data and Replace data tools are available in the SOLIDWORKS Electrical 3D Project toolbar.

You can also access these tools from Tools > SOLIDWORKS Electrical > Process.

In earlier releases, these tools were only available in SOLIDWORKS Electrical Schematic. With these tools in SOLIDWORKS Electrical 3D, you can update project data such as manufacturer part properties, cable references, symbols, and title blocks. You need not switch back to the SOLIDWORKS Electrical Schematic application each time to update or refresh the changes.
