You can import the
extended reality file types .glTF and .GLB.

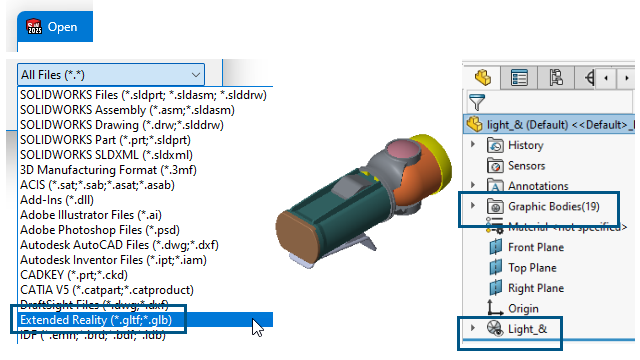

To import extended reality files:
- Click Open
(Standard toolbar) or .
- In the dialog box, for Files of
Type, select Extended Reality (.*GLTF and
.GLB).
- Browse to select a file and click Open.
Importing glTF™ and GLB files includes:
- Geometry hierarchy of the imported
glTF
or GLB file
- Draco™ compression
This is a compression option for large-sized files. You do not
specify any options on import. The file owner specifies the Draco compression on
export of the glTF or GLB files from the source software.
- Noneditable textures. The software imports textures but not as proper SOLIDWORKS
appearances.
