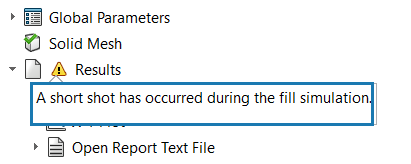

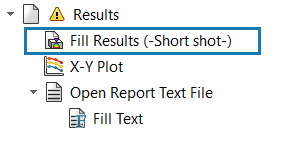

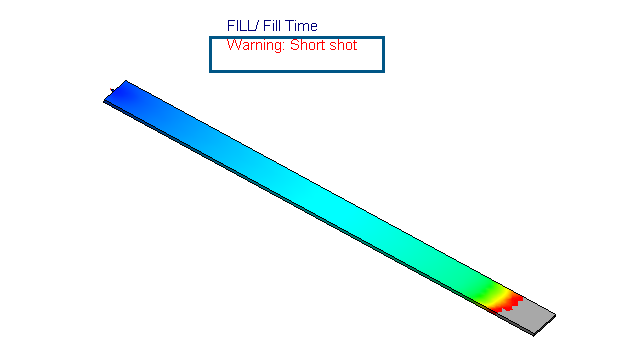

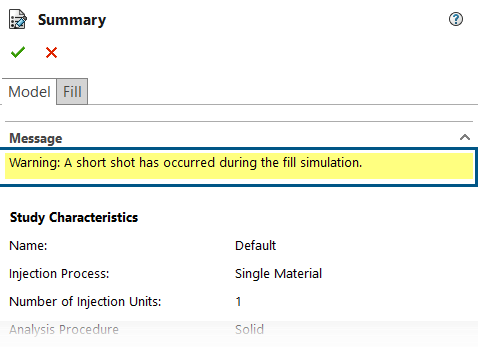

Short Shot Detection (2025 SP2) Several user interface enhancements make it easier to identify the presence of short shots for plastic injection simulations. The following user interface enhancements help you detect the presence of short shots that might occur during filling. Added the string Warning: Short Shot under the plot title of the Fill Time plot. Added the string Short shot next to the Fill Results node. Added the tooltip A short shot has occurred during the fill simulation under the Results node. Added a warning about the occurrence of short shots in the Summary PropertyManager. Parent topicSOLIDWORKS Plastics Fill Analysis Improved Sink Marks Prediction Isolate the Cause of Warpage Materials Database Meshing Performance Renamed Warp Analysis Results
