There are several enhancements for the Fill analysis.
- The Fill analysis is 25% faster when using fiber-filled materials for
plastic
parts.

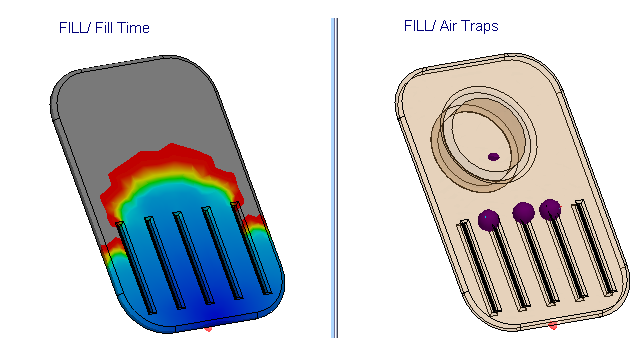

- The Fill analysis predicts weld lines and air traps even in instances of
short shots. For example, the image above shows a short shot (left) and the
predicted air traps (right) for a fill analysis of a part.
- Rendering of fill-time animations in isosurface mode has been significantly
accelerated (up to 75%) for large models with a
high
number of elements. The memory required to generate the fill-time animations has
also increased, as SOLIDWORKS Plastics uses all available memory resources for
animation generation.
- The isosurface animation of fill-time plots saved in AVI
format has a smoother appearance with significantly reduced lag because the
delay time between successive result frames decreased.
