Fatigue Analysis of a Link Part

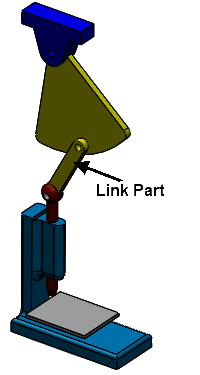

The Link part of the Punch assembly is analyzed using fatigue analysis. The loads for the reference static study are imported from SOLIDWORKS Motion as illustrated by the Importing Loads from SOLIDWORKS Motion lesson.

In this lesson you learn the following:

Defining a fatigue study
Setting properties of the fatigue study
Defining constant-amplitude fatigue events
Viewing an SN curve for the part material
Viewing fatigue results

Search 'Fatigue Analysis of a Link Part' in the SOLIDWORKS Knowledge Base.
