Viewing Principal Stresses

In the Simulation study tree, open the Results folder.
Double-click Stress1 (-vonMises-) to display the plot.
If the plot does not exist, create this plot.
Right-click the plot icon and select Edit Definition.
In the PropertyManager, under Display:
1. Set Component to P1: 1st Principal Stress.
2. Select psi in Units .
Click .

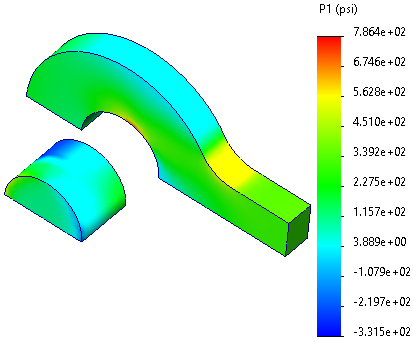

The first principal stress plot is displayed.
