Plotting Contact Pressure

Next, you plot the contact pressure and customize the plot.

1. In the Simulation study tree, right-click the Results folder and select Define Stress Plot .
2. In the PropertyManager, under Display:
   1. Set Component to CP: Contact Pressure.
   2. Select psi in Units .
3. Click .

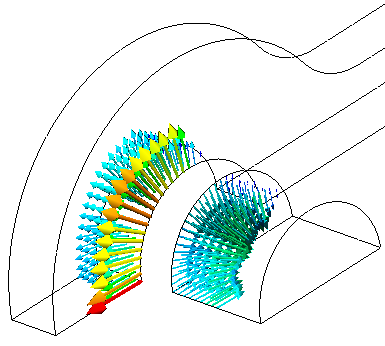

   The following contact pressure plot in vector format is displayed.


4. In the Simulation study tree, right-click the contact pressure plot icon and select Vector Plot Options.
5. In the PropertyManager, under Options, specify Size to 1000.
6. Click .
7. Use the Zoom to Area tool to zoom in the vector plot.
