Viewing Resultant Displacements

Displacements for top and bottom faces are assumed equal.

In the Simulation study tree, open the Results folder.
Double-click Displacement1 (-Res disp-) to display the plot.
If the plot does not exist, create this plot using steps 3, 4, or 5 in Viewing Stress Results on Top Faces

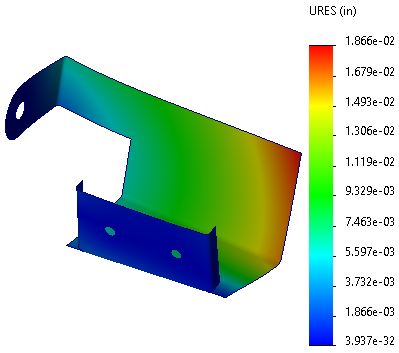

Rotate the model as shown in the figure.
The plot is shown in inches above. You can right-click the plot and select Edit Definition to change the units.
Click File > Save to This PC to save the model, then close the document.

Congratulations! You have completed this lesson.
