Viewing Stresses Due to Impact

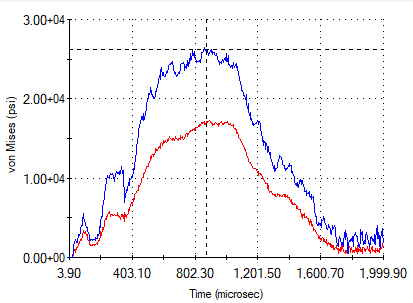

In the Simulation study tree, right-click the Results folder and select Define Time History Plot.
In the PropertyManager under Response, select Vertex 1 and Vertex 2.
Under Y axis, do the following:
1. Select Stress.
2. Select VON: von Mises Stress in Component .
3. Select psi in Units .
Click .
