Viewing the Stress Results

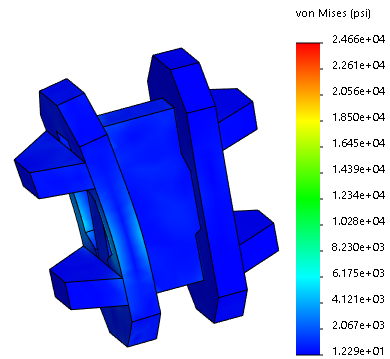

Right-click the Results folder and select Define Stress Plot .
In the PropertyManager, under Display, select psi for Units .
Under Deformed shape select User defined and type 1 for Scale Factor .
Click .
