Inserting Model Items

If you insert dimensions and annotations while you create a part, you can insert these "model items" into all of the drawing views automatically.

1. Click Model Items (Annotation tab).
2. In the PropertyManager, do the following:
   1. Under Source/Destination, select Entire model and Import items into all views.
   2. Under Dimensions, click:
      • Marked for drawing
      • Not marked for drawing
      • Eliminate duplicates
3. Click .

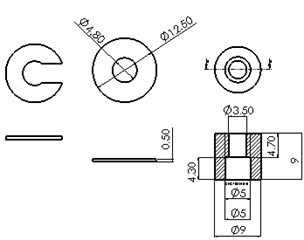

4. Drag the dimensions so they are aligned as shown.
