Mating the Angular Faces

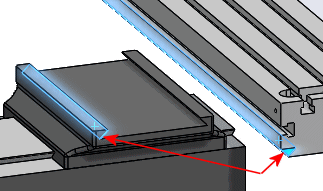

Select the corresponding angular faces on the table and saddle.
Accept the Coincident mate.
Close the PropertyManager.
Click Isometric (Heads-up View toolbar).
Drag the table.
The table and saddle are still not fully constrained.
