Completing the Rest of the Groups

  1. In the PropertyManager, click .
    Groups is cleared for the next structural member.
  2. Expand the flyout FeatureManager design tree.
    • Square tube 30 X 30 X 2.6(1) appears at the bottom of the tree.
    • Cut list(12) is added.
    When the first weldment feature is inserted in a part, Cut list appears in the FeatureManager design tree. As you create entities (structural members, gussets, extrudes, etc.), they are added to the Cut list folder. Identical items are grouped together in Cut-List-Item subfolders, for later use in a cut list table on the weldment drawing.

    If you see the icon , the cut list needs to be updated. The icon indicates that the cut list is up-to-date.

    The number following the Cut list indicates how many entities are in the folder.

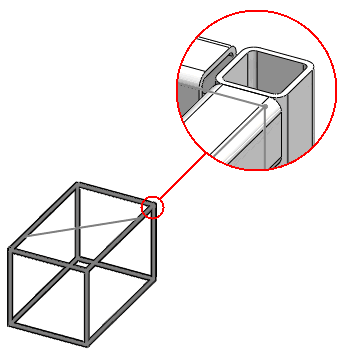

  3. Expand Cut list(12) to see a list of five subfolders that contain the twelve segments of Square tube 30 X 30 X 2.6(1).
