Completing the View

Click in the sheet to open the PropertyManager for a new drawing view.
Under Scale, select Use custom scale and select 1:20.

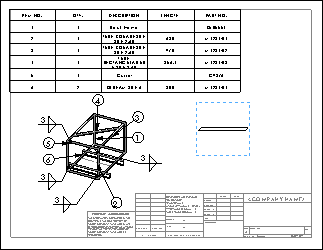

Place the relative view as shown and click .
The face you selected for Front is facing frontward, and the face you selected for Bottom is facing downward.
Dimension the relative view as shown.
Click File > Save to This PC and in the dialog box, click Save All.

Congratulations! You have completed this tutorial.
