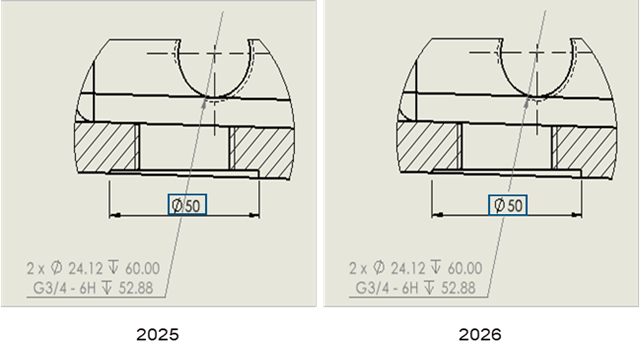

You can
add
breaks
to dimension lines to avoid overlapping dimension
text.
To add
breaks
to dimension lines around dimension text:
- Right-click
a dimension line that overlaps dimension text and click Add Dimension Break.
- Optional: After you add a dimension break, you can right-click and select:
- Remove Dimension
Breaks. Removes an existing dimension
break.
- Update Dimension
Break. Modifies an existing dimension
break.
