The user interface
gives
you a better experience when working with multiple
drawing
sheets or tabs, moving folders in the
FeatureManager® design tree, and working on
multiple monitors.
Improvements:

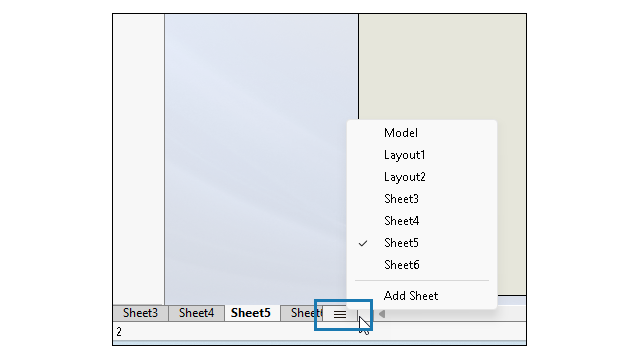

- At
the bottom of a drawing sheet or tab,
click
List
to view a list of sheets or tabs
that are open. At the bottom of the list, Add
Sheet or options to create a new study are
available.
- Limitations while moving the folders below the
Origin
and above
Mates
feature are resolved. You can move components and folders
up
or down in the FeatureManager design tree.
- While working with multiple
monitors,
when you have a number of files open
on
a
single monitor and you click ,
the
software
evenly distributes files for display and
tiles
them to all the available monitors. For example, if there are six
files and three monitors, the
software
tiles and displays two files in each monitor.
