You can select the appropriate combination of trim type and trim order
for a complex corner from the graphics
area.
To select
outputs of corners based on the trim type and trim
order:
- Open a structure system part.
- In the FeatureManager design tree, right-click Corner
Management and click Edit Feature
.
- In the graphics area, select a complex corner.

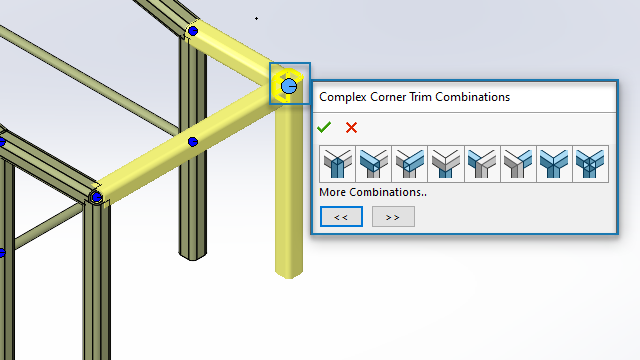

- In the Complex Corner Trim
Combinations
dialog box, select options to represent the outputs of a corner based on the trim
type and trim order.
- Click
or
to select additional combinations.
- Click
.
The output options appear in the graphics area when three or more
members meet at a
point.

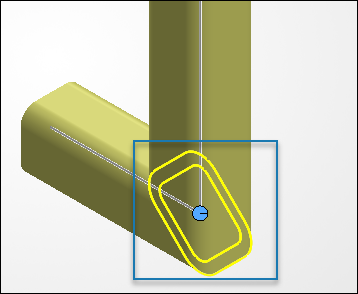

When members meet at a point,
yellow
borders display the trimmed surface.
