Grid Systems

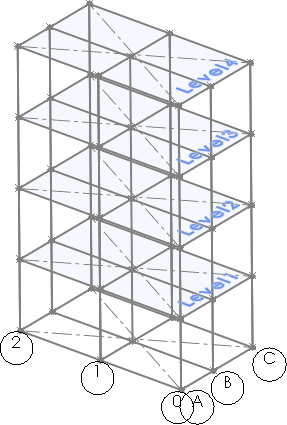

You can use the Grid System tool to lay out a grid system for large structures.

You can use grid systems to guide placement of structural members, locate equipment, or provide visual reference to the overall design. The grid system is helpful when you work with multiple users who use different third-party applications because they can make grids from the same baseline.
