Choosing Alternative Fillet Corners

To choose alternative fillet corners:

  1. Right-click a fillet corner and select Edit Feature.

    In the PropertyManager, the corner appears under Corner Faces select_face_planar.png.

  2. Click Show Alternatives.

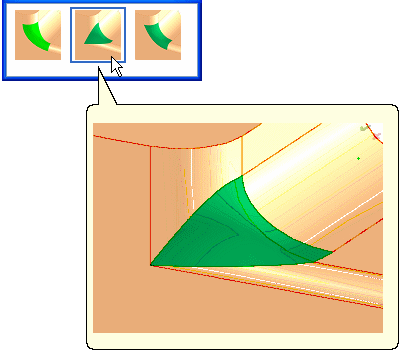

  3. In the pop-up, click a preview to replace the selected fillet corner.

  4. Click .
