Moving a Face Up to a Surface

Additional end conditions are available in the Move Face PropertyManager, including Up To Surface.

To move a face up to a surface:

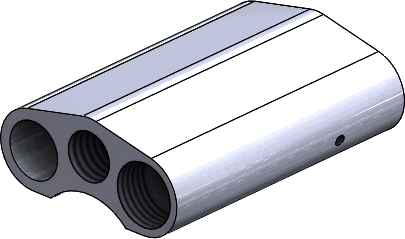

  1. Open install_dir\samples\whatsnew\parts\block.sldprt.
  2. Click Move Face (Features toolbar) or Insert > Face > Move.

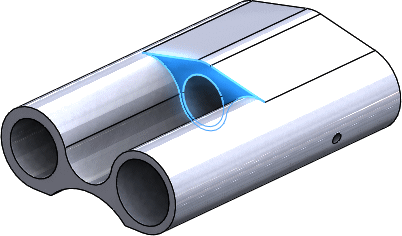

  3. In the graphics area, select the face shown for Face(s) to move .

  4. In the PropertyManager, under Parameters, in End Condition, select Up To Surface.

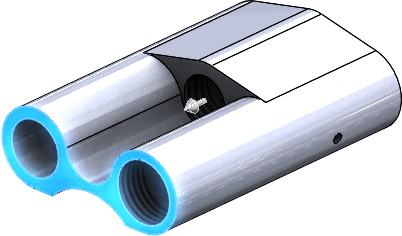

  5. Select the face shown for To Entity .

  6. Click .

    The face moves to the selected surface.

  7. Close the part without saving.
