Using the PropertyManager to View Curvature Combs

In addition to the Surface Curvature Combs tool, you can use PropertyManagers to view curvature combs.

  1. Roll the model forward to ControlsCornerFill-Surface-Fill3 .

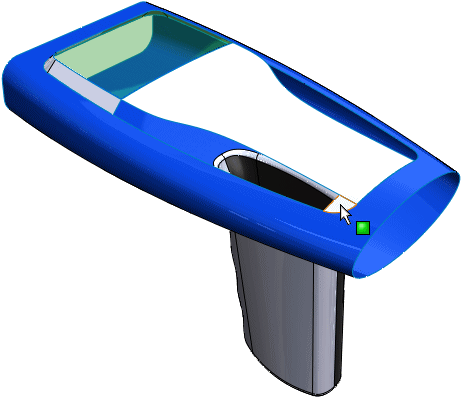

  2. Select the face shown and click Edit Feature .

  3. In the PropertyManager, under Curvature Display, select Curvature combs and Direction 1. Clear Direction 2.
  4. Set the Scale to 40.

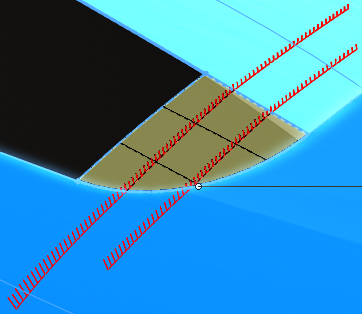

    The combs indicate a smooth continuous curvature across adjacent faces.
