Comparing 3D PMI Between Parts

You can use the 3D PMI Compare tool to compare DimXpert annotations, reference dimensions, and other annotations between two part documents.

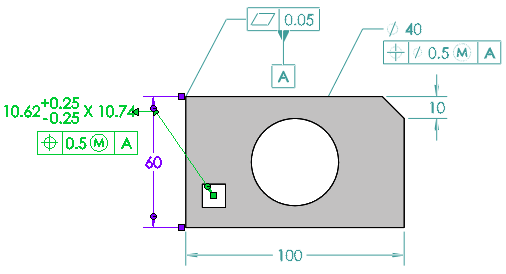

Reference document

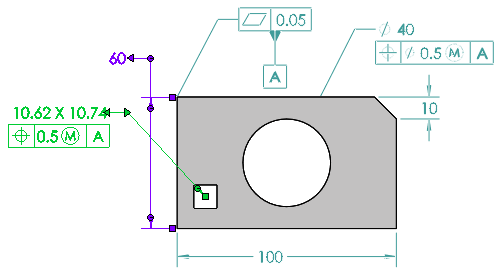

Modified document

To compare 3D PMI between parts:

  1. Click Tools > Compare > 3D PMI.
  2. In the Task Pane, select the Reference document and Modified document.
  3. Click Run Comparison.
