Toon Shading

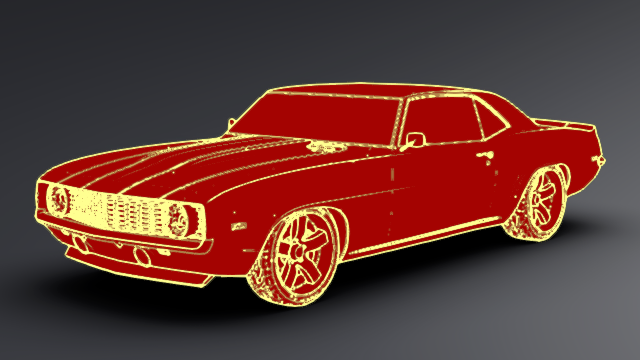

Toon shading mimics the style of a comic book or cartoon and provides a characteristic paper-like texture. Toon shading is available only with Visualize Professional.

To add Toon shading:
  1. In the Palette, on the Cameras tab, select the Filters subtab.

    Because Toon shading is added as a camera filter, your primary appearance assignments remain unchanged.

  2. Under Toon, select Enable Toon and specify parameters:
    Toon Presets Provides a list of predefined toon profiles that you can select.

    Black Edges

    White on Black

    Black on White

    Ambient Occlusion

    Custom

    Edge Color Changes the color of the outlines. Click the color box to open the Color Picker dialog box.
    Shading Style Select a style:

    Normal

    Toon Shaded

    Toon Detail

    Color Override

    Plain Shaded

You can save the camera .svcm file, which contains the Toon shading parameters, and use it in other Visualize projects or share it with other users.
