2D footprint alignment

|
Menu: Cabinet layout >
2D footprint alignment |

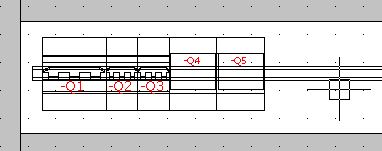

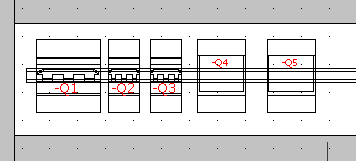

Allows to align the selected 2D footprints and center them on a rail.

|
Ends the command. |

|
Returns to the previous interface. |
Select the devices you wish to process.
Options
Spacing: Enter
the distance between the selected 2D footprints.
You can also use the Align blocks command
to align the 2D Footprints, horizontally and vertically.
