Full Round Fillets

Creates fillets that are tangent to three adjacent faces sets (with one or more faces tangent).

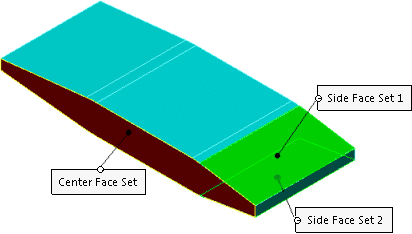

Select three adjacent face sets.

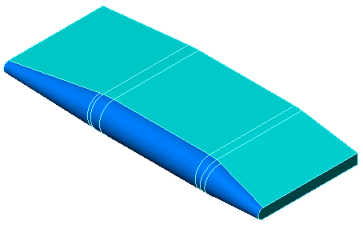

Full round fillet applied to one side of the model.

Items To Fillet

Side Face Set 1 Select the first side face.
Center Face Set Select the center face.
Side Face Set 2 Select the face set opposite Side Face Set 1 .
  Show selection toolbar Shows/hides selection accelerator toolbars
  Tangent propagation Extends the fillet to all faces that are tangent to the selected face. Example: Tangent Propagation
  Full preview Displays a fillet preview of all edges.
  Partial preview Displays a fillet preview of one edge only. Press the A key to view each fillet preview in turn.
  No Preview Improves rebuild time with complex models.
