When you use the Move/Copy Body command, you can control the
Translate and Rotate values with
equations. You can add these equations to a design table and control them there. You can
double-click the dimensions in the graphics area and specify them using the
Modify dialog box.
Under Rotate, you can select Euler's
angular rotation and specify values for Yaw (side-to-side), Pitch (up-down), and Roll
(twist). This method delivers the same resulting rotation regardless of the order in
which you specify these values.

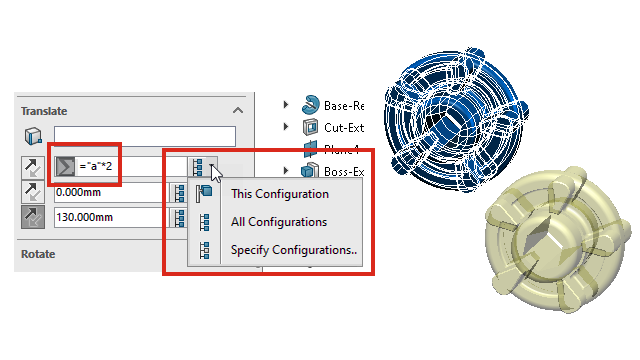

If models have
configurations, you can specify the configurations to which the dimensions apply for
Translate and for Rotate when you
select Euler method of angular dimensions.
