You can modify ordinate dimensions using commands on the shortcut menu.
To modify ordinate dimensions:
Right-click an ordinate dimension, select Display Options, then choose from these options:
| Option |
Description |
|---|
| Align Ordinate |
Aligns all the dimensions along the ordinate with the 0.0 ordinate. |
|---|
| Jog |
Bends the leader line of a dimension and allows you to reposition the dimension. |
|---|
| Re-Jog Ordinate |
Applies the automatic jogging algorithm to the ordinate dimensions. |
|---|

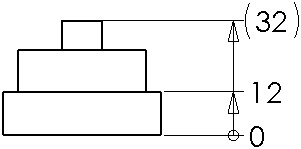

| Show Parentheses |
Adds parentheses around the selected dimensions.
|
|---|

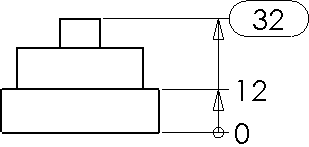

| Show as Inspection |
Shows the selected dimensions as inspection dimensions.
|
|---|
