Nodal Indicator for wiring order displays the wiring order directly in the scheme. An
oblique line indicates how the components are connected.
This feature is optional and is available in the Graphics tab of electrical project
configuration.

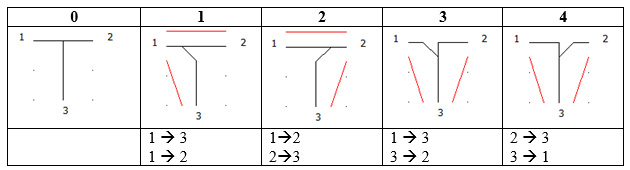

Cabling Order Representation
Representations vary depending on the orientation of the T connection.
The two last representations (3 and 4) are for the same wiring. They only indicate a
different wiring sequence that depends on whether the sequence starts from the left-
or right-hand side.
By default, the oblique line indicates the first wire in the cabling sequence.
- It is possible to place nodal indicators on a T
connection with vertical or horizontal lines. An oblique line cannot
have nodal indicators, even if the angle between lines in 90º.
- You cannot manage nodal indicators with a +
connection.
- One intersection can have one and only one oblique line.
- If the wiring order cannot show the nodal indicator, a
T connection is displayed.
- Even if the nodal indicator representation is based on the wiring order,
you can edit it manually using the context menu of the wire.
