Compare Results



You can display four different results plots from one study using split view panes.

To display multiple result plots after running a study:

Do one of the following:
  • Click Compare Results (Plastics CommandManager).
  • In a study's PlasticsManager tree, right-click Results and click Compare Results.

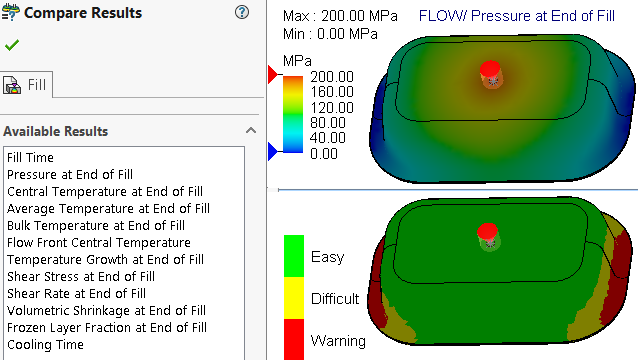

In the Compare Results PropertyManager, you have these options:
Option Description
Synchronize Views Applies the same view orientation to all view panes.
Save Image Saves the split view of the multiple result plots to a .png image format.

You can also specify the maximum and minimum values of the results shown on the view panes, view an isosurface mode, and use available tools to display animations.
