Cool Solver



Solver options for ejection criteria enhance the performance of plastic injection simulations for thermoplastic materials.

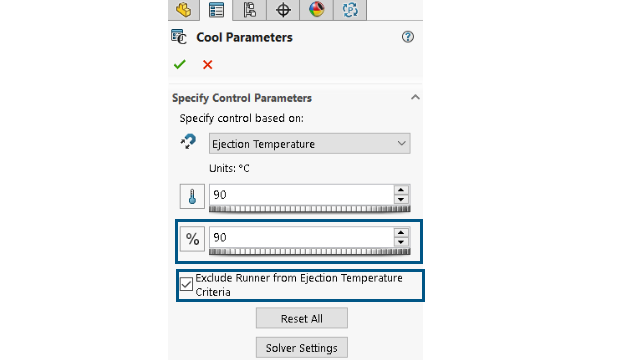

You can either specify the cooling time or let the cool solver estimate a cooling time based on the following temperature ejection criteria for thermoplastic materials.
Option Description
Volume % frozen at ejection Specifies the percentage of the mold's volume that needs to cool down below the ejection temperature. The default is 90%.
Exclude Runner from Ejection Temperature Criteria Excludes the cooling state of the sprue and runner segments from the ejection criteria. It is common to reduce the overall manufacturing time by ejecting the part before the sprue and runner segments have cooled completely.
