SOLIDWORKS Electrical API 2024.0.0
Electrical API
Public Member Functions | List of all members
IEwTerminalTypeX Interface Reference

Use this interface to manage an IEwTerminalTypeX object. More...

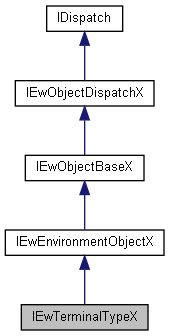

Inheritance diagram for IEwTerminalTypeX:
Inheritance graph

Public Member Functions

LONG getID ()

BSTR getName (EwErrorCode *errorCode)
 Get the name of the current object. More...

EwErrorCode setName (BSTR strName)
 Set the name of the current object. More...

BSTR getBlockName (EwErrorCode *errorCode)
 Get the block name of the current object. More...

EwErrorCode setBlockName (BSTR strBlockName)
 Set the block name of the current object. More...

- Public Member Functions inherited from IEwEnvironmentObjectX
DATE getCreationDate (EwErrorCode *errorCode)
 Get the creation date of the current object. More...

DATE getModificationDate (EwErrorCode *errorCode)
 Get the last modification date of the current object. More...

EwCreatorType getEwCreatorType (EwErrorCode *errorCode)
 Get the creator of the current object. More...

BSTR getModifiedBy (EwErrorCode *eErrorCode)
 Get the last user name that modified the current object. More...

BSTR getCreatedBy (EwErrorCode *eErrorCode)
 Get the user name that created the current object. More...

EwErrorCode setTranslatedData (LONG nUserDataNumber, BSTR strLanguage, BSTR strValue)
 Set the value of a translated text. More...

BSTR getTranslatedData (LONG nUserDataNumber, BSTR strLanguage, EwErrorCode *errorCode)
 Get the value of a translated text. More...

- Public Member Functions inherited from IEwObjectBaseX
EwErrorCode insert ()
 Insert the object inside the current project. More...

EwErrorCode remove ()
 Remove the object from the current project. More...

EwErrorCode update ()
 Update the object inside the current project. More...


Detailed Description

Use this interface to manage an IEwTerminalTypeX object.

Since
2022 SP0

Member Function Documentation

◆ getBlockName()

BSTR IEwTerminalTypeX::getBlockName ( EwErrorCode *  errorCode)

Get the block name of the current object.

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
Returns
will contain the name

◆ getID()

LONG IEwTerminalTypeX::getID ( )
Returns
Get the ID of the object used. -1 if the object is invalid.

◆ getName()

BSTR IEwTerminalTypeX::getName ( EwErrorCode *  errorCode)

Get the name of the current object.

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
Returns
will contain the name

◆ setBlockName()

EwErrorCode IEwTerminalTypeX::setBlockName ( BSTR  strBlockName)

Set the block name of the current object.

Parameters
[in]strBlockNameThe block name you want to set
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_BAD_INPUTS if empty

◆ setName()

EwErrorCode IEwTerminalTypeX::setName ( BSTR  strName)

Set the name of the current object.

Parameters
[in]strNameThe name you want to set
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_BAD_INPUTS if empty
Generated on Mon Aug 28 2023 13:39:21 for SOLIDWORKS Electrical API by doxygen 1.9.4
