You
can control the visibility of
part
sketches in
assemblies.
SOLIDWORKS maintains
the
visibility of sketch display states when you insert a part into an
assembly.
In earlier releases, the part took precedence over the sketch.
To
control
the
visibility
of part sketches in assemblies:

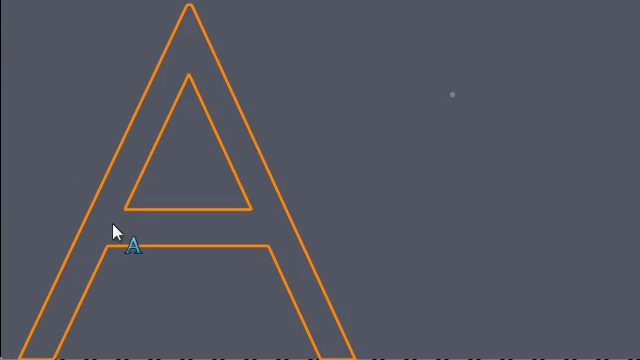

- Create a part with two sketches.
- Create two display states in the part.
- Make the sketch visibility such that one sketch is visible in
one display state and the other sketch is visible in the other display
state.
- Insert two instances of
the
part in an assembly.
- Make the sketch visibility such that
each
part display state is visible.
Each
component shows the visibility of the sketch per its referred display
state.
