You can control which
drawings to include or exclude when using the Export as
Package tool, located in the Collaboration tab of the MySession action bar. This tool lets you export
data packages from SOLIDWORKS Connected or the Design with SOLIDWORKS app.
Benefits: The Exclude option helps you
avoid exporting unnecessary or outdated drawings and reduces the size of the exported
package.
When setting up your export package, you
can manually select which drawings to include.
To include or exclude drawings in an export package:
- With the parts or assemblies open in MySession, select a file
and click the in the action bar.
- Select a node from the file and click Add
Drawings to display any linked drawings in the view.

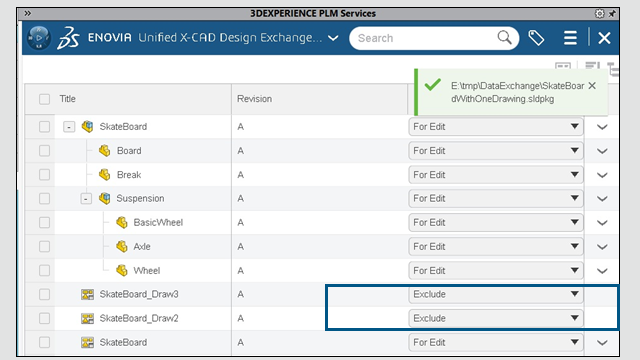

- For each drawing, under the Purpose column:
- Choose For Edit
to include it in the package.
- Choose Read-Only
to include it as non-editable.
- Choose Exclude to
leave it out of the package.
You can only include one revision of a
drawing in each export package. The tool does not support exporting multiple revisions
of the same drawing.
