Generating a Section Plot of the Temperature

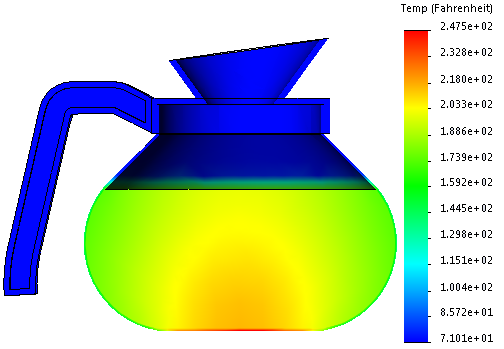

You view temperature at the last time step using a section plot.

To generate a section plot:

In the Simulation study tree, right-click Thermal (-Temperature-) and select Section Clipping .
Select the Right plane from the flyout FeatureManager design tree for Reference entity under Section 1.
Under Options, clear Show section plane.
Click .
Save your work and close the assembly document.

Congratulations! You have completed this lesson.
