Viewing the Stress Results

To view von Mises stress:

In the Simulation study tree, right-click the Results folder and select Define Stress Plot .
In the PropertyManager under Display, select N/m^2 for Units .
Under Deformed shape, select User defined and type 1 for Scale Factor .
Click .

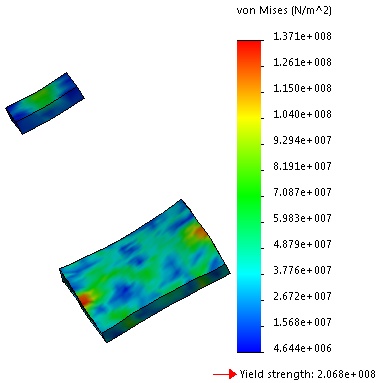

Von Mises stress at the last time step (time = 3000 sec) is plotted.
