Animating the Displacement Plot and Plotting von Mises Stresses

To animate the displacement plot, right-click anywhere in the graphics area and select Animate.
Click this animation to play it or to reset it.
In the Animation PropertyManager:
1. Under Basics, click to stop the animation.
2. Click .

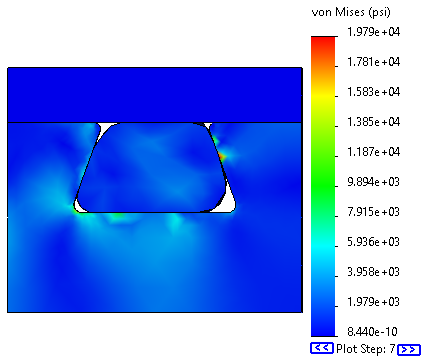

To plot von Mises stresses, in the Simulation study tree, double-click the Stress1 icon in the Results folder.

Congratulations! You have completed this lesson.
